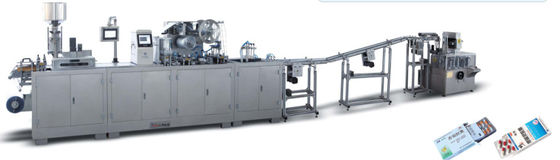

Fully Automatic Blister Packing machine and Cartoning Machine Packaging Production Line
Description of Blister Packing Machine:
* Adjustable stroke: That can change the sheet size freely and suitable for the production of various kinds of specifications.
* Plate-type construction: Blister Packing Machine is suitable for packing the matter of any shape such as the special matters of square, triangle and oval shape etc.
* Positive pressing formation: That makes the bubble, cap wall uniform, stiff and smooth and makes the packing finished products more beautiful.
* Shaping, feeding, heat-sealing, pressing, lot number printing and cutting can be completed automatically.
* Material recovery device: It can automatically recover a whole roll of waste material.
Applications:
It is suitable for the combined sealing packing of the bubble-cap Al-plastic for capsules, tablets, injectors, sweets, hardware and other matters in the pharmaceutical factory, hospital, food and electronic industries.
* Main Technical Datas:
|
Blanking Frequency |
20-40 Times/min |
|
Layout Dimensions Series |
57*80mm |
|
Adjustable range of stoke |
40-110mm (Control freely |
|
Air compressor |
≥ 0.15 m3/min |
|
Total Power |
2.6 kw |
|
Rated Frequency |
50 Hz |
|
Rated Power Supply |
AC380V |
|
Weight |
900kg |
|
Overall Dimension |
L × W × H 2400 × 710 × 1360mm |
Quick Detail:
The machine suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle, cosmetics, commodity, hardware, card, and some other similar products into the carton. Adjust automatic feeding structure conveniently, randomly setup the quantity of blisters on touch screen. Online products feeding and detecting, leaflet folding(1-4 folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing lot number, sealing carton with tuck-in or hot melt glue device. Automatic reject lacking of package products and leaflet and convey the finished products. The machine can be used single or joint with pillow-type packing machine or other equipment for a production line.
Features:
Adopt International famours brand of electrical component such as PLC, Frequency inverters, etc.
Adopt Human-machine operation system.
Servo feeding suitable for different specification Alu-PVC blister. Automatically stop when machine is overloaded.
Autoamatically reject lacking of package products and leaflet.
Automatically display trouble, alarm and counting.
Stable performance, easy operation.
Main Technological parameter
|
Model |
DXH-100 |
|
|
Speed |
50~100boxes/min |
|
|
Box |
Quality requirement |
250~350g/m 2 (according to the dimensions to confrim) |
|
Dimension(L × W × H) |
(70-180)mm × (35-85)mm × (14-50)mm |
|
|
Leaflet |
Quality requirement |
60-70 g/m 2 |
|
Unfolded leaflet Specification |
(80-250)mm × (90-170)mm |
|
|
Folded Leaflet Specification |
1-4 fold |
|
|
Compressed air |
Working pressure |
≥ 0.6mpa |
|
|
Air consumption |
20m 3 /h |
|
Power Supply |
380V 50HZ |
|
|
Motor power |
0.75kw |
|
|
Machine Dimension(L × W × H) |
3100 × 1100 × 1550MM |
|
|
Weight |
1400kg |
|
